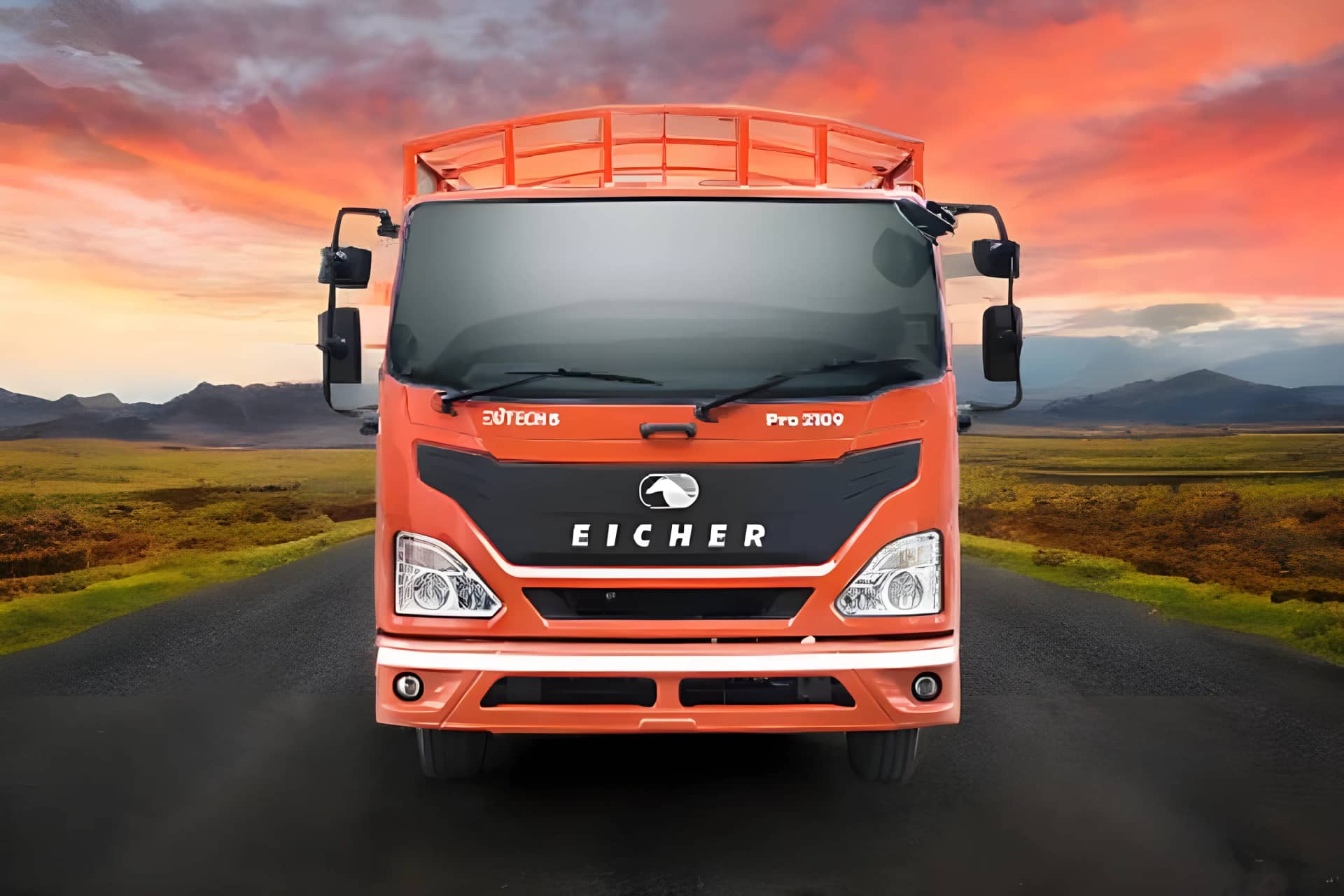

Key Specifications of Eicher Pro 2109 Turbo Plus CNG

Eicher Pro 2109 Turbo Plus CNG Specifications

Specification	Value
Engine And Transmission
Engine Description	E483 BS6
Engine Capacity	3300 cc
Maximum Power	85kW@2600 rpm
Maximum Torque	360Nm@1600-2000 rpm
Number of Cylinders	4
Gear Box	5 Forward+1 Reverse
Clutch	Single Plate Dry
Cabin Type	2m Tiltable Cabin
Clutch Diameter	310 mm
Top Speed	80 kmph
Mileage	7 kmpl (User Reported)
Gradeability	24%
Tyre and Brake
Front Tyre	8.25 x 16 16PR/8.25 x R16 16PR
Rear Tyre	8.25 x 16 16PR/8.25 x R16 16PR
Tyre Type	Radial
Numbers Of Tyres	6
Spare Wheel	Yes
Front Brake	Drum Air Brakes
Rear Brake	Drum Air Brakes
Service Brake	Yes
Parking Brake	Yes
Steering Type	Power Steering
Suspension & Axle
Front Suspension	Semi Elliptical Laminated Leafs with Shock Absorbers
Rear Suspension	Semi Elliptical Laminated Leaves with Helper Springs
Front Axle	Reverse Elliot Type
Rear Axle	Heavy Duty Fully Floating Single Reduction
Chassis Type	Chassis with Cabin
Front Axle Weight	3700 kg (3.7 Ton)
Rear Axle Weight	7749 kg (7.74 Ton)
Dimensions
Loading Area Length	24 feet
Wheelbase	5170 mm
Ground Clearance	195 mm
Kerb Weight	5300 kg (5.3 Ton)
Gross Vehicle Weight	11449 kg (11.44 Ton)
Payload Capacity	6149 kg (6.14 Ton)
Turning Radius	10.15 m
Fuel Tank capacity	100 kg (Approx)
Seating Capacity	2
Features
Air Conditioner	Optional
Music	No
Navigation	No
Cruise Control	Yes
Mobile Charger	Yes
Battery	12V 130 Ah
Adjustable Driver Seat	Yes
Warranty	3 Years (Unlimited km On Vehicle)/4 Years (Unlimited km On Engine and Gearbox)
