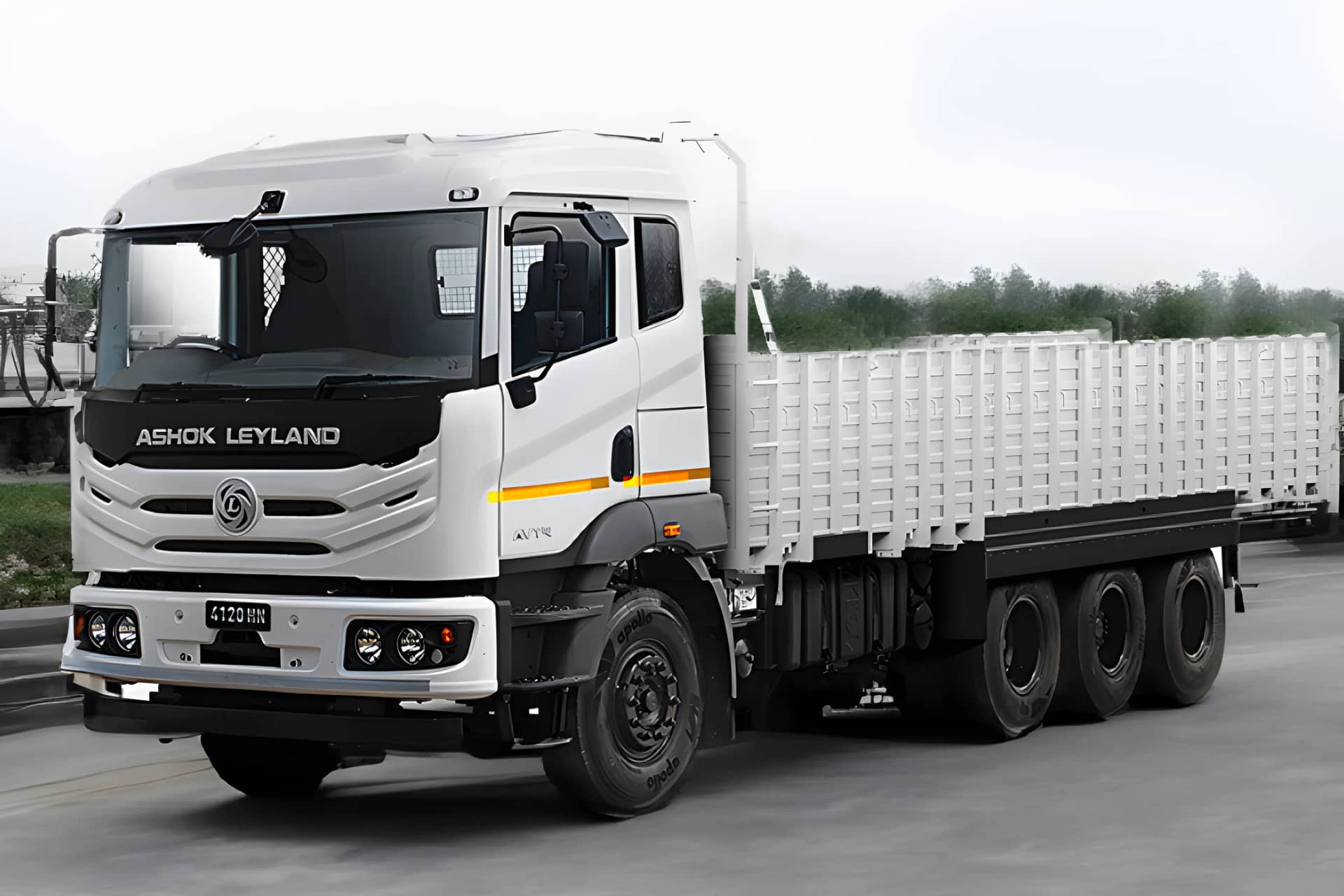

Key Specifications of Ashok Leyland 4125-8x2

Ashok Leyland 4125-8x2 Specifications

Specification	Value
Engine And Transmission
Engine Description	Compression Ignition Turbo-charged Inter-Cooled
Engine Capacity	5300 cc
Maximum Power	185 kW
Maximum Torque	900 Nm
Number of Cylinders	4
Gear Box	8 speed
Clutch	395 mm dia – Single dry plate, ceramic clutch with air assisted hydraulic booster
Cabin Type	N-Premium cabin
Tyre and Brake
Front Tyre	295 90R20- 16 PR
Rear Tyre	295 90R20- 16 PR
Numbers Of Tyres	14
Front Brake	Full air Dual line with ABS
Rear Brake	Full air Dual line with ABS
Parking Brake	Yes
Steering Type	Power Steering
Suspension & Axle
Front Suspension	semi-elliptic multi leaf parabolic springs (optional)
Rear Suspension	Non-reactive suspension
Front Axle	Forged I section- reverse Elliot type (Optional) unitized wheel bearings
Rear Axle	Fully floating single speed rear axle (Optional) unitized wheel bearings
Chassis Type	Chassis with Cabin
Dimensions
Length	10960 mm
Width	2570 mm
Height	3177 mm
Loading Area Length	32 ft
Wheelbase	6000 mm
Ground Clearance	253 mm
Gross Vehicle Weight	40500 kg
Payload Capacity	10000 kg
Turning Radius	20.7 m
Fuel Tank capacity	375 Litres
Features
Air Conditioner	No
Music	No
Mobile Charger	Yes
Battery	120 Ah 150 Ah (AC)
