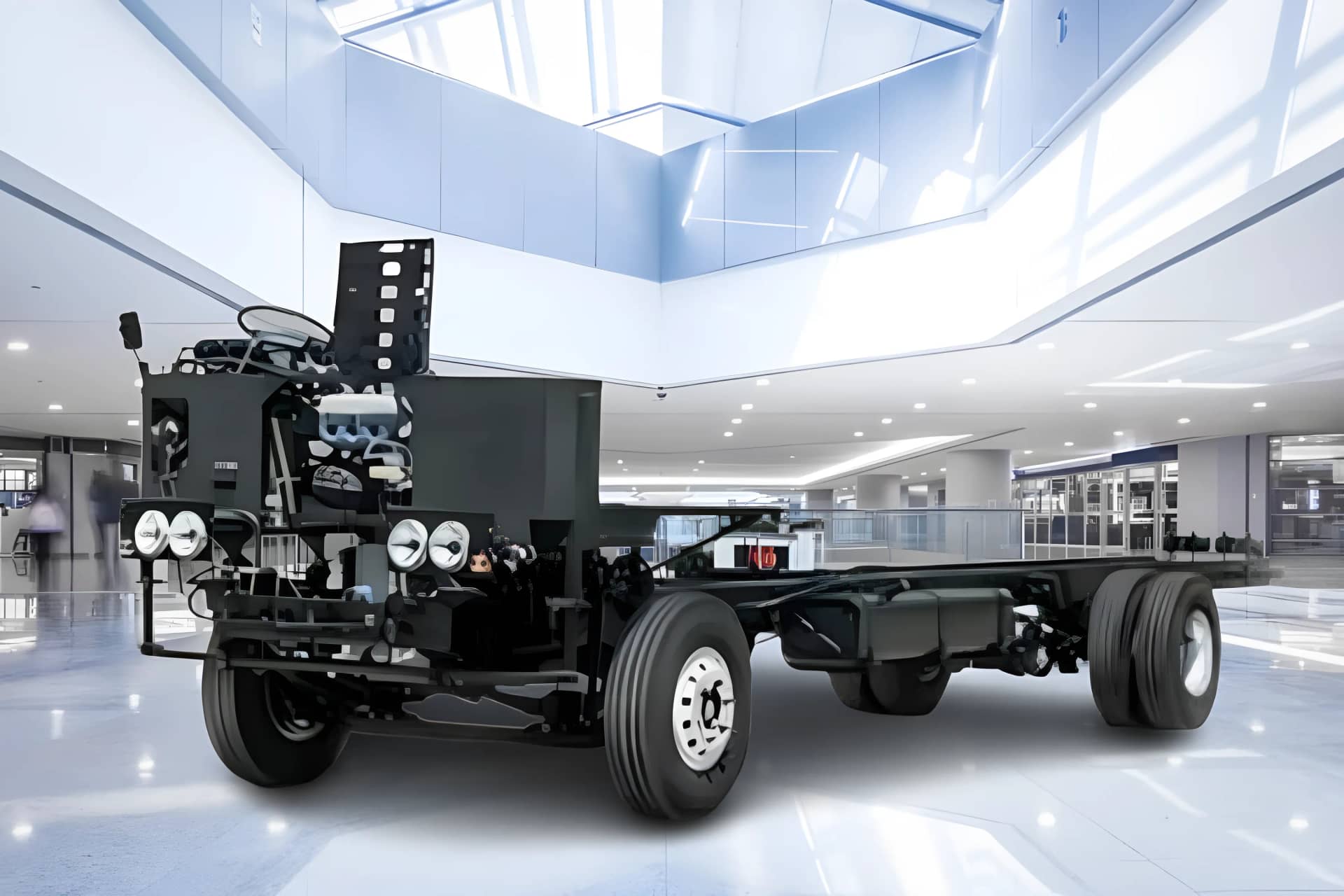

Eicher 2090 L Specifications

Specification	Value
Engine And Transmission
Engine Description	E474
Engine Capacity	2960 cc
Maximum Power	90kW@3200 rpm
Maximum Torque	350Nm@1200-2500 rpm
Number of Cylinders	4
Gear Box	5 Forward + 1 Reverse
Clutch Type	Dry, Single Plate
Clutch Diameter	310 mm
Alternator	110 A
Tyre, Brake And Suspension
Front Tyre	8.25x16 16PR, 235/75 R17.5 14PR
Rear Tyre	8.25x16 16PR, 235/75 R17.5 14PR
Tyre Type	Radial
Wheel Size	16/17.5 inch
Wheel Type	Steel
Front Brake	Dual Circuit 'S' Cam Full Air brakes
Rear Brake	Dual Circuit 'S' Cam Full Air brakes
Steering Type	Power Steering
Front Suspension	Semi-Elliptical/ Parabolic with ARB
Rear Suspension	Semi-Elliptical/ Parabolic
Chassis Type	Domex 650
Chassis Parameter	200x65x5 mm
Dimensions
TCD (Turning Circle Diameter)	19.4 m
Length	9284 mm (30.46 ft)
Width	1990 mm (6.53 ft
Height	2511 mm (8.24 ft)
Wheelbase	5240 mm (17.19 ft)
Ground Clearance	187 mm (0.61 ft)
Gross Vehicle Weight	9800 kg
Fuel Tank capacity	160 Litres
Additional Tank Capacity	19 Litres
Features
Air Conditioner	No
Emergency Exit	Yes
Emergency Kit	Yes
Battery	12V, 130 Ah
