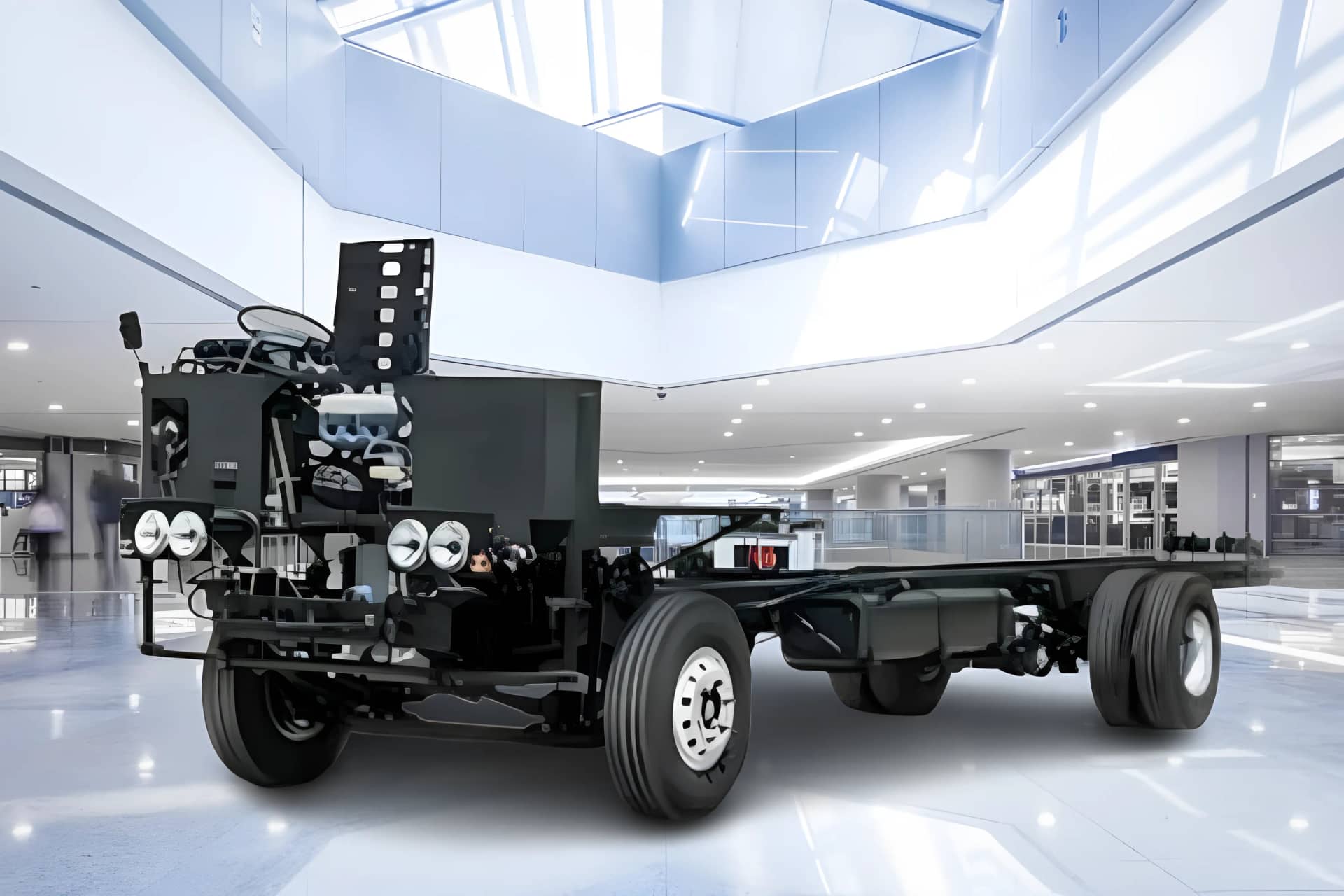

Eicher 2075 G Specifications

Specification	Value
Engine And Transmission
Engine Description	E474
Engine Capacity	2960 cc
Maximum Power	90kW@3200 rpm
Maximum Torque	350Nm@1200-2500 rpm
Number of Cylinders	4
Gear Box	5 Forward + 1 Reverse
Clutch Type	Dry, Single Plate
Clutch Diameter	310 mm
Alternator	110 A
Tyre, Brake And Suspension
Front Tyre	7.50x16 16PR
Rear Tyre	7.50x16 16PR
Wheel Size	17.5 inch
Front Brake	Dual Circuit 'S' Cam Full Air brakes
Rear Brake	Dual Circuit 'S' Cam Full Air brakes
Steering Type	Power Steering
Front Suspension	Semi elliptic
Rear Suspension	Semi elliptic
Chassis Type	Domex 650
Chassis Parameter	200x65x5 mm
Dimensions
TCD (Turning Circle Diameter)	14.4 m
Length	7089 mm (23.26 ft)
Width	1990 mm (6.53 ft)
Height	2480 mm (8.14 ft)
Wheelbase	3870 mm (12.70 ft)
Ground Clearance	187 mm (0.61 ft)
Gross Vehicle Weight	7500 kg
Fuel Tank capacity	100 Litres
Additional Tank Capacity	19 Litres
Features
Air Conditioner	No
Emergency Exit	Yes
Emergency Kit	Yes
Battery	12V 130 Ah
